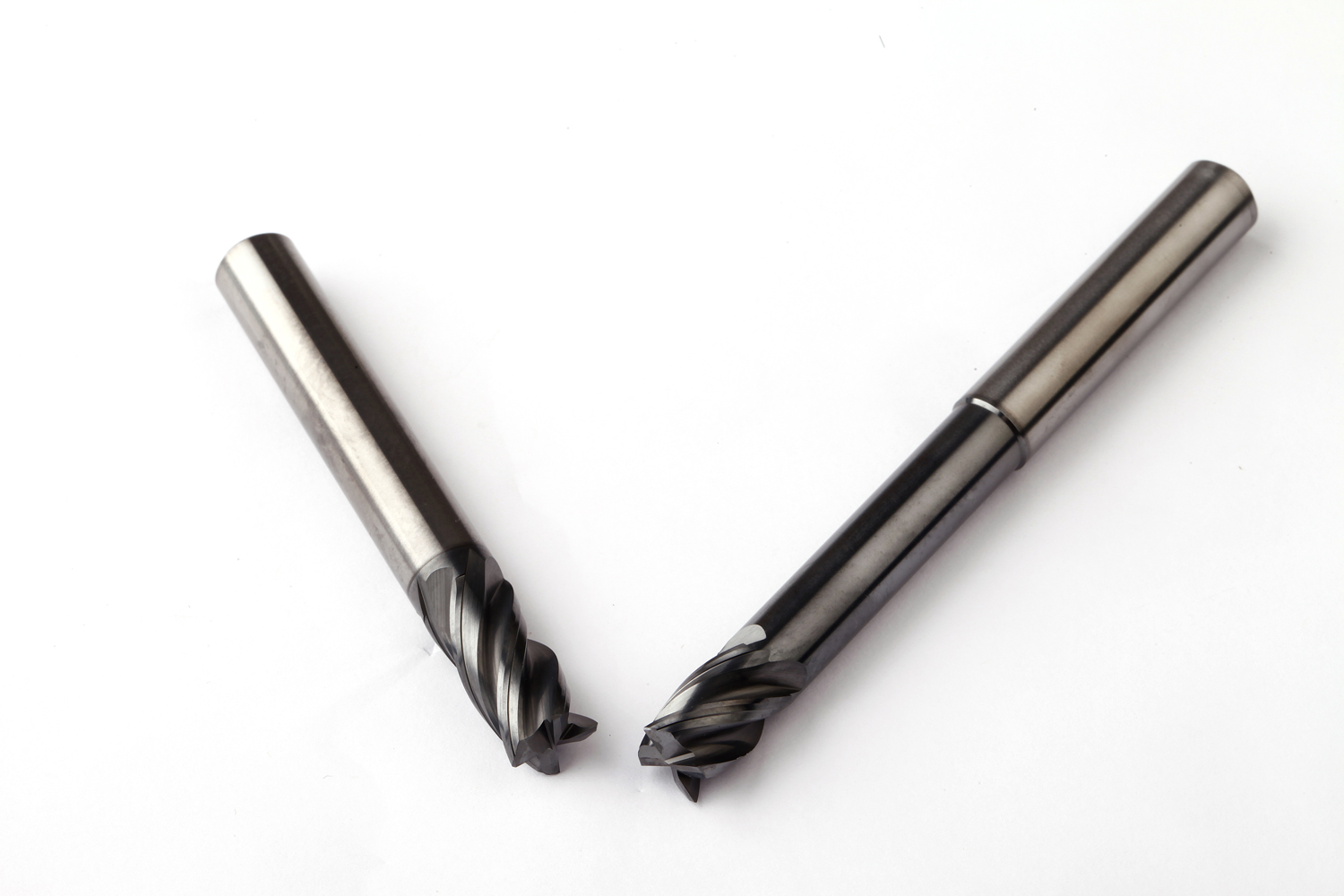

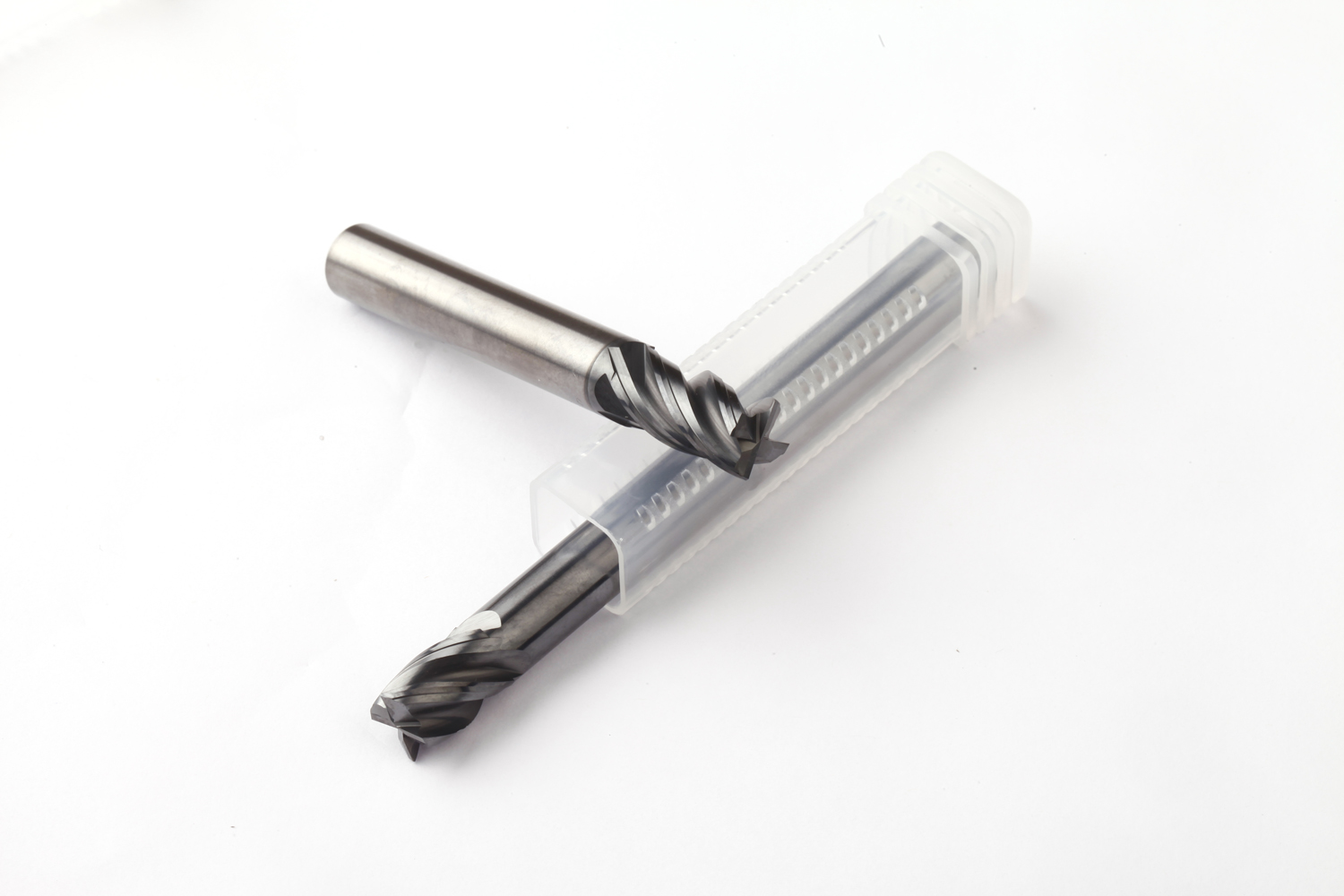

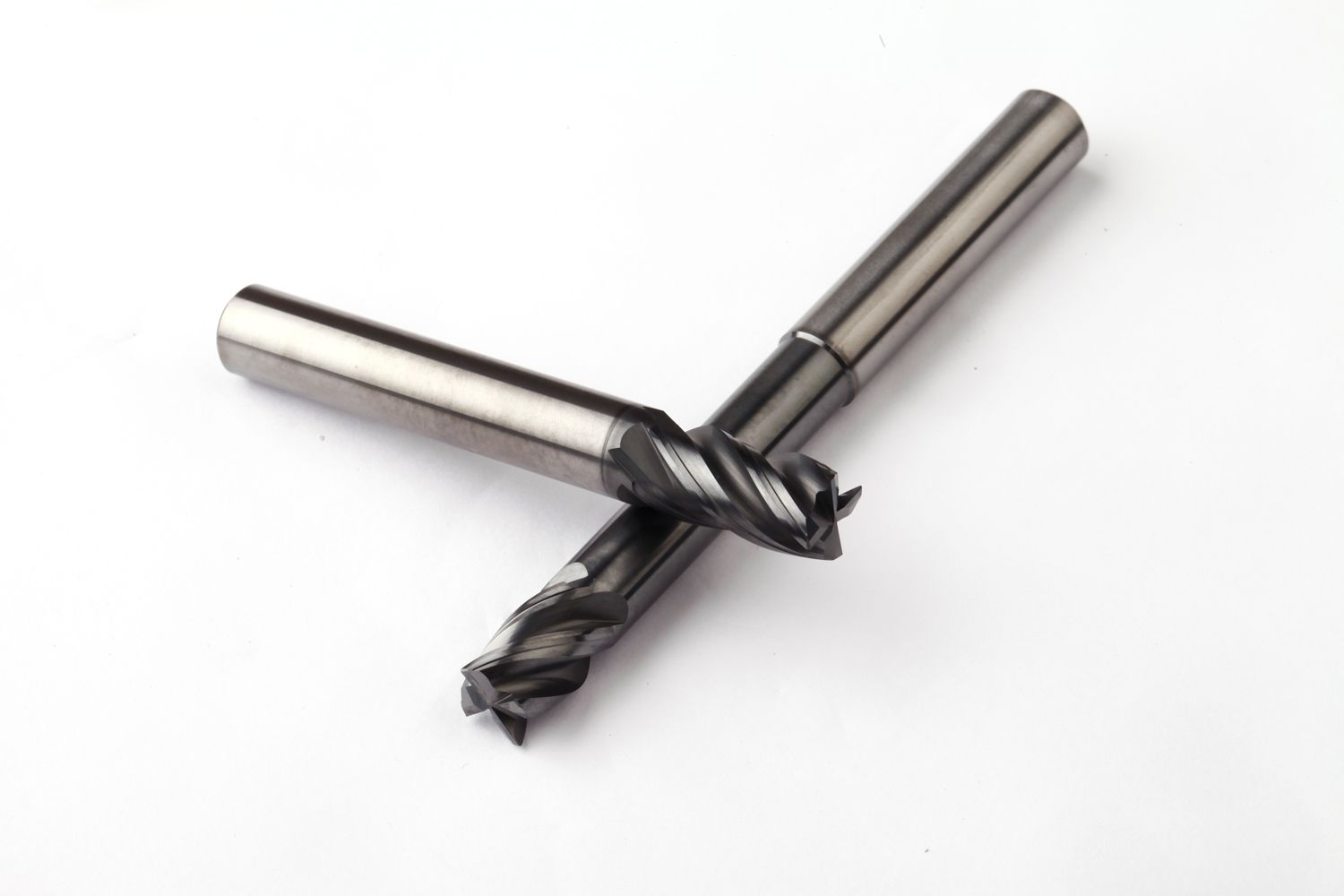

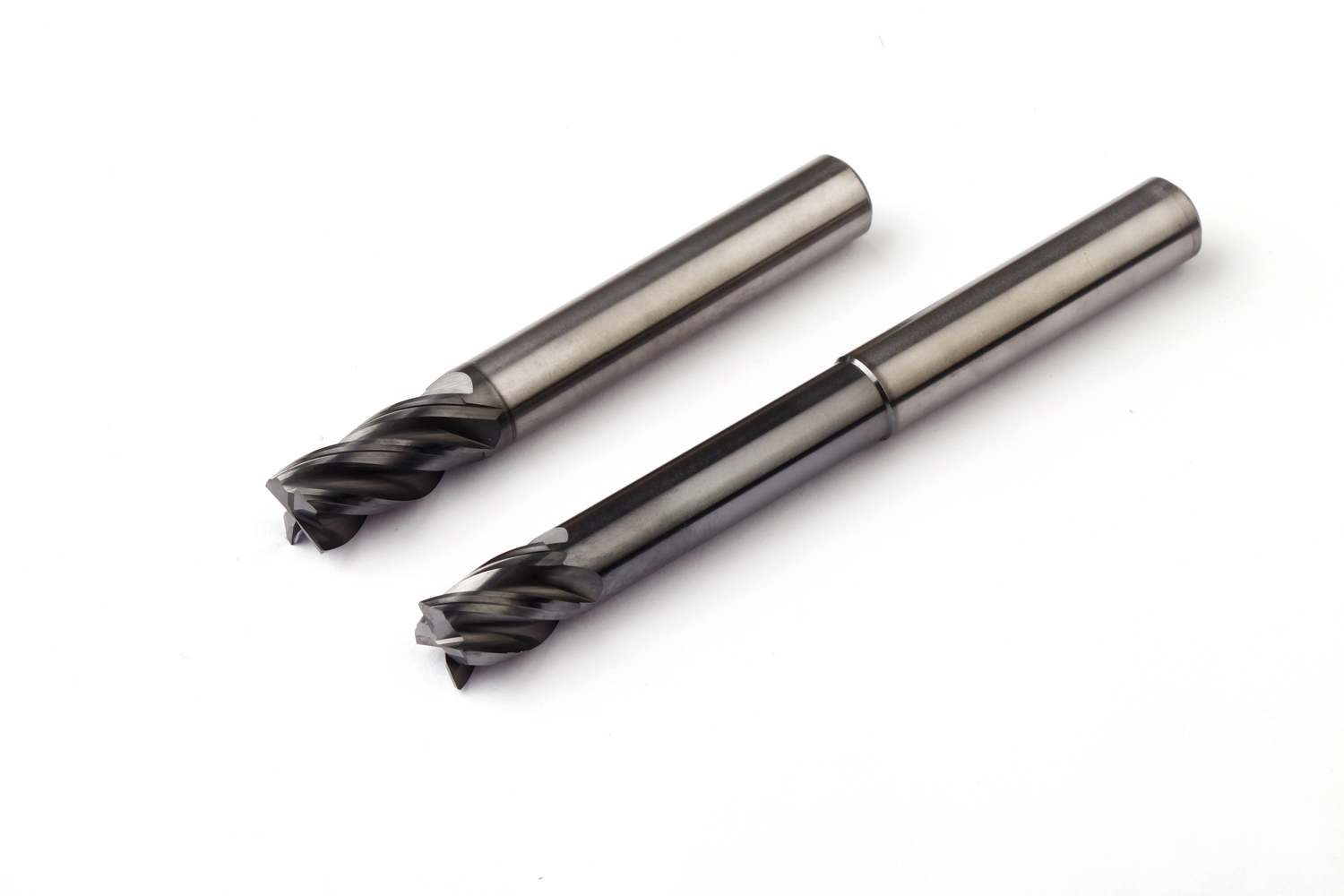

GCPN435C


●Ultra-fine Cemented Carbide

●Suitable for Stainless Steel, various Steel Alloy and Steel machining

●Realize high efficiency processing in the way of large cutting

●4F, Chamfer, X coating, Unequal indexing, Multiple helix

●Unique design maximizes chip removal and improves productivity in slotting and heavy profiling operations.

●Recommend Application: Rough and Semi-Finish processing for Stainless Steel








P/N
D
（mm）
ap
(mm)

                 H

             （mm）

d
(mm)
L
(mm)
F# Tip Coating
GCPN435 030 G 20 054 C010 X 3 6 12 6 54 4 C0.1 Microkevlar X
GCPN435 030 G 20 057 C010 X 3 6 17 6 57 4 C0.1 Microkevlar X
GCPN435 040 G 20 054 C015 X 4 8 15 6 54 4 0.15 Microkevlar X
GCPN435 040 G 20 062 C015 X 4 8 22 6 62 4 C0.15 Microkevlar X
GCPN435 050 G 20 054 C015 X 5 10 17 6 54 4 C0.15 Microkevlar X
GCPN435 050 G 20 065 C015 X 5 10 27 6 65 4 C0.15 Microkevlar X
GCPN435 060 E 16 057 C020 X 6 10 21 6 57 4 C0.2 Microkevlar X
GCPN435 060 E 16 068 C020 X 6 10 32 6 68 4 C0.2 Microkevlar X
GCPN435 080 E 15 063 C020 X 8 12 27 8 63 4 C0.2 Microkevlar X
GCPN435 080 E 15 082 C020 X 8 12 46 8 82 4 C0.2 Microkevlar X
GCPN435 100 E 14 072 C030 X 10 14 32 10 72 4 C0.3 Microkevlar X
GCPN435 100 E 14 100 C030 X 10 14 55 10 100 4 C0.3 Microkevlar X
GCPN435 120 E 13 083 C035 X 12 16 38 12 83 4 C0.35 Microkevlar X
GCPN435 120 E 13 108 C035 X 12 16 64 12 108 4 C0.35 Microkevlar X
GCPN435 160 E 13 092 C040 X 16 22 44 16 92 4 C0.4 Microkevlar X
GCPN435 160 E 13 108 C040 X 16 22 60 16 108 4 C0.4 Microkevlar X
GCPN435 160 E 13 135 C040 X 16 22 87 16 135 4 C0.4 Microkevlar X
GCPN435 200 E 14 104 C050 X 20 28 54 20 104 4 C0.5 Microkevlar X
GCPN435 200 E 14 125 C050 X 20 28 75 20 125 4 C0.5 Microkevlar X
GCPN435 200 E 14 160 C050 X 20 28 110 20 160 4 C0.5 Microkevlar X





GCPN435 Speed and Recommendations

ISO GROUP

CMG

Type of cut

ap*Dc

ae*Dc

Vc

Parameters

4 6 8 10 12 16 20
P

     P

 1-2

Side Milling

1.5 0.5

 152

 130-168

RPM 12125 8080 6060 5345 4450 3340 2670
Fz 0.008 0.016 0.027 0.038 0.047 0.053 0.065
F 395 520 665 820 835 710 695

Slotting

1 1

 112

 91-135

RPM 9710 6470 4850 3880 3240 2430 1783
Fz 0.008 0.016 0.027 0.038 0.047 0.053 0.065
F 310 414 523 589 609 515 463

     P

3-4

Side Milling

1 0.5

   107

 95-130

RPM 8485 5655 4240 3740 3100 2330 1870
Fz 0.008 0.016 0.027 0.038 0.047 0.053 0.065
F 275 365 460 575 580 490 485

Slotting

1 1

     99

  84-114

RPM 7880 5250 3940 3150 2630 1970 1576
Fz 0.008 0.016 0.027 0.038 0.047 0.053 0.065
F 252 336 425 478 494 417 409

     P

5-6

Side Milling

1 0.5

    70

 60-81

RPM 5090 3395 2545 2240 1860 1400 1120
Fz 0.006 0.011 0.019 0.027 0.032 0.037 0.045
F 115 150 190 240 240 205 200

Slotting

1 1

     61

 55-67

RPM 4850 3240 2430 1940 1620 1210 971
Fz 0.006 0.011 0.019 0.027 0.032 0.037 0.045
F 116 142 184 209 207 179 174
K

K

 12-13

Side Milling

1 0.5

130

 110-150

RPM 10335 6890 5161 4558 3775 2842 2279
Fz 0.01 0.02 0.034 0.048 0.058 0.065 0.081
F 413 551 702 875 875 738 738

Slotting

1 1

112

 91-135

RPM 8910 5940 4455 3930 3255 2450 1965
Fz 0.01 0.02 0.034 0.048 0.058 0.065 0.081
F 360 480 600 755 760 640 635
M

     M

 8-9

Side Milling

1.5 0.5

105

 84-126

RPM 8400 5570 4178 3342 2785 2089 1674
Fz 0.008 0.025 0.034 0.042 0.048 0.062 0.071
F 268 550 572 559 529 516 476

Slotting

1 1

    85

 68-102

RPM 6767 4509 3382 2706 2255 1691 1353
Fz 0.008 0.025 0.034 0.042 0.048 0.062 0.071
F 216 446 463 452 428 418 386
M10

Side Milling

1 0.4

 155

 124-186

RPM 11740 8223 6167 4934 4112 3084 2467
Fz 0.006 0.034 0.046 0.057 0.067 0.086 0.095
F 281 1125 1125 1125 1094 1055 937

Slotting

1 1

  125

 100-150

RPM 9950 6631 4974 3979 3316 2487 1989
Fz 0.006 0.034 0.046 0.057 0.067 0.081 0.095
F 238 907 907 907 882 803 756
M11

Side Milling

0.6 0.3

     44

 35-53

RPM 3503 2334 1751 1401 1167 875 700
Fz 0.008 0.016 0.021 0.027 0.032 0.04 0.046
F 112 151 146 149 151 140 128

Slotting

0.4 1

    36

  29-43

RPM 2866 1910 1432 1146 955 716 573
Fz 0.008 0.016 0.021 0.027 0.032 0.04 0.046
F 92 123 120 122 123 114 105
S S22

Side Milling

1 0.4

    70

 56-84

RPM 5573 3714 2785 2228 1857 1393 1114
Fz 0.007 0.016 0.025 0.042 0.05 0.055 0.068
F 156 237 278 374 371 306 303

Slotting

1 1

     55

 44-66

RPM 4378 2918 2188 1751 1459 1094 875
Fz 0.007 0.016 0.025 0.042 0.05 0.055 0.068
F 122 186 218 294 291 240 238

     S

19-21

Side Milling

0.6 0.3

     32

  26-38

RPM 2547 1698 1273 1019 849 637 509
Fz 0.005 0.012 0.019 0.032 0.038 0.048 0.055
F 51 81 96 130 129 122 112

Slotting

0.4 1

     25

 20-30

RPM 1990 1326 995 796 663 497 398
Fz 0.005 0.012 0.019 0.032 0.038 0.048 0.055
F 39 63 75 101 100 95 87
