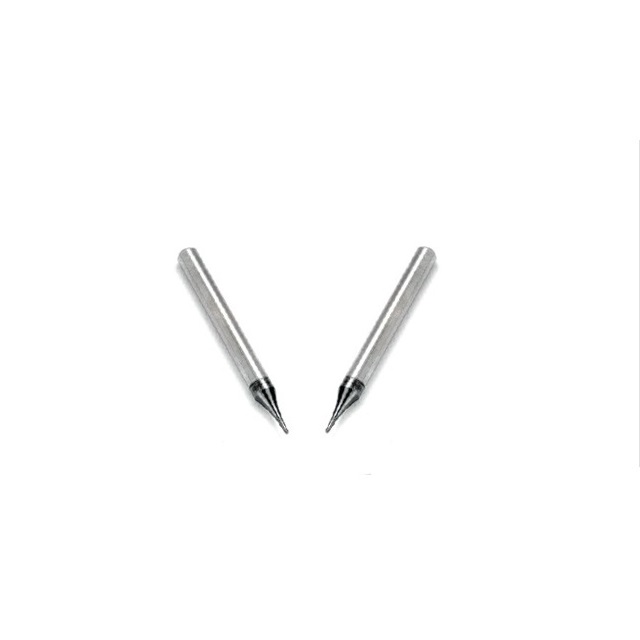

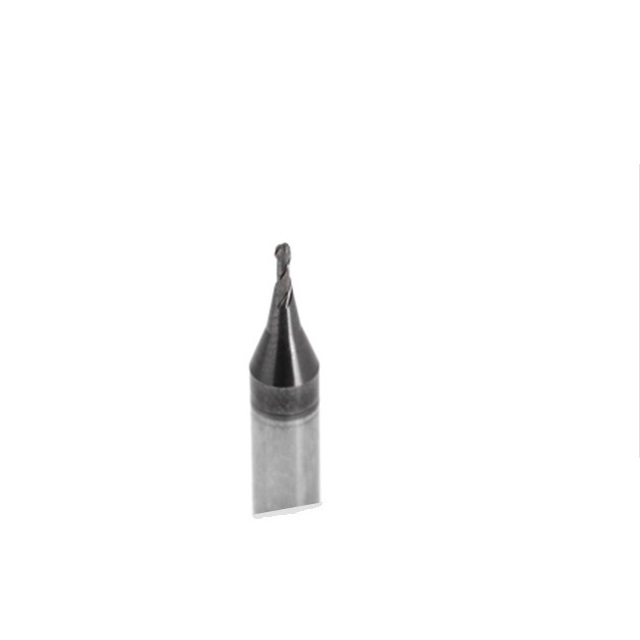

S230BL



●Ultra small end mill(Dia.0.1MM-0.9mm)

●Suitable for Stainless Steel and Steel machining

●2F, Ball end, X coating, High hardness, HRC62

●Recommend Application: ELECTRON INDUSTRY & MILITARY INDUSTRY & WACHMAKING INDUSTRY & TINY OIL HOLE machining.









P/N
D
（mm）
ap
(mm)
d
(mm)
L
(mm)
F# Tip Coating
S230 0100 F2 25 070 B X 1 2.5 6 70 2 BN Microkevlar X
S230 0150 F2 26 070 B X 1.5 4 6 70 2 BN Microkevlar X
S230 0200 F2 25 080 B X 2 5 6 80 2 BN Microkevlar X
S230 0250 F2 24 080 B X 2.5 6 6 80 2 BN Microkevlar X
S230 0300 F2 20 100 B X 3 6 6 100 2 BN Microkevlar X
S230 0400 F2 20 070 B X 4 8 6 70 2 BN Microkevlar X
S230 0400 F2 20 100 B X 4 8 6 100 2 BN Microkevlar X
S230 0500 F2 20 080 B X 5 10 6 80 2 BN Microkevlar X
S230 0600 D 20 090 B X 6 12 6 90 2 BN
 Microkevlar X
S230 0600 D 20 130 B X 6 12 6 130 2 BN
 Microkevlar X




S230BL Speed and Recommendations

ISO

   GROUP

CMG ap*Dc
ae*Dc

Parameters

0.1 0.2 0.4 0.6 0.8
P
P
  1-2
0.05 0.08 RPM 40000 30000 30000 30000 30000
Fz 0.007 0.012 0.019 0.029 0.039
F 550 720 1140 1740 2340
Vc  13 19 38 57 75
P
 3-4
0.05 0.08 RPM 40000 30000 30000 30000 30000
Fz 0.006 0.011 0.017 0.025 0.033
F 500 630 1020 1500 1980
Vc  13 19 38 57 75
P
  5-6
0.05 0.08 RPM 33000 27000 27000 27000 27000
Fz 0.006 0.011 0.017 0.024 0.033
F 400 575 900 1320 1800
Vc  10 17 34 51 68
K
K
 12-15
0.05 0.08 RPM 40000 30000 30000 30000 30000
Fz 0.007 0.012 0.019 0.029 0.039
F 550 720 1140 1740 2340
Vc  13 19 38 57 75
