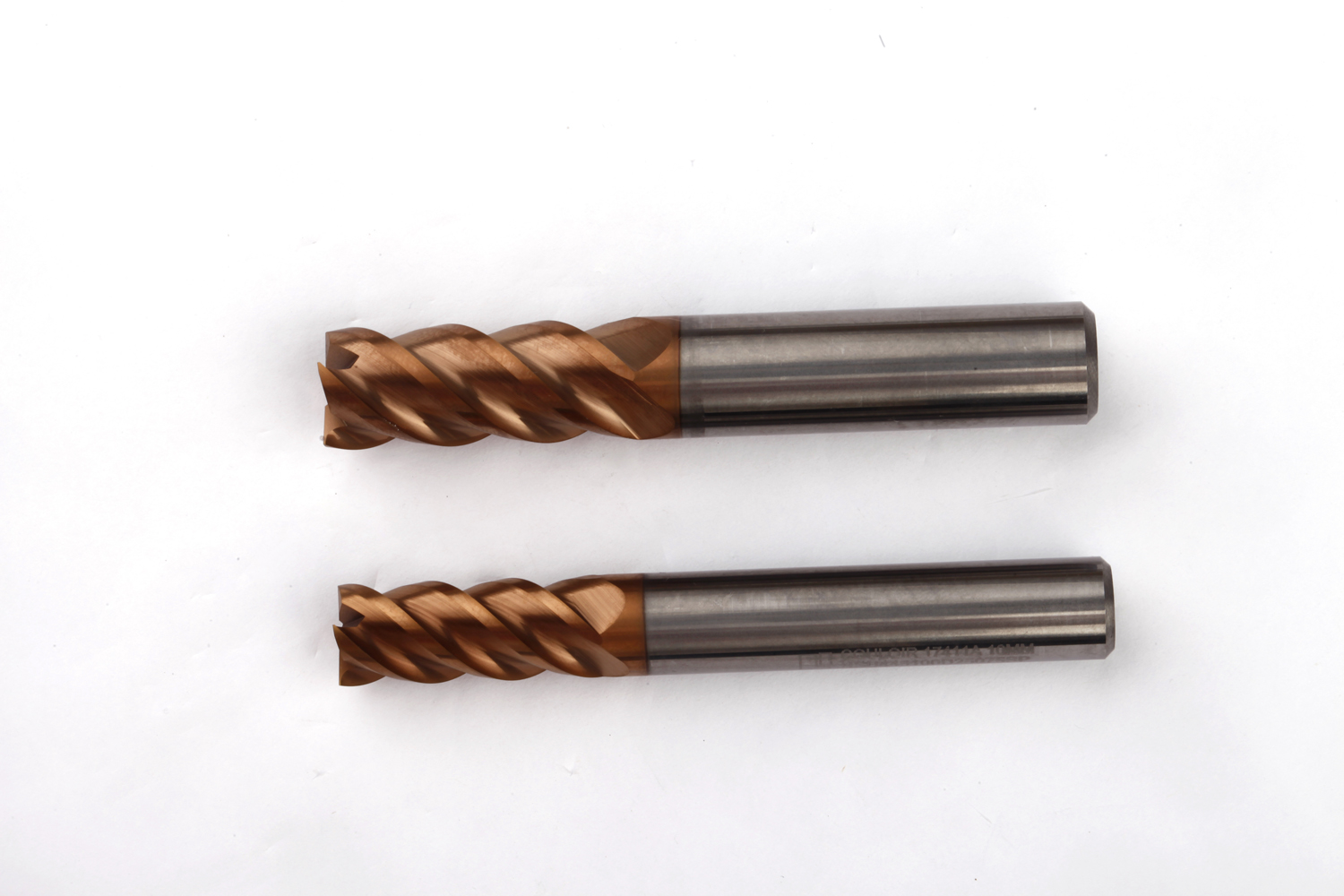

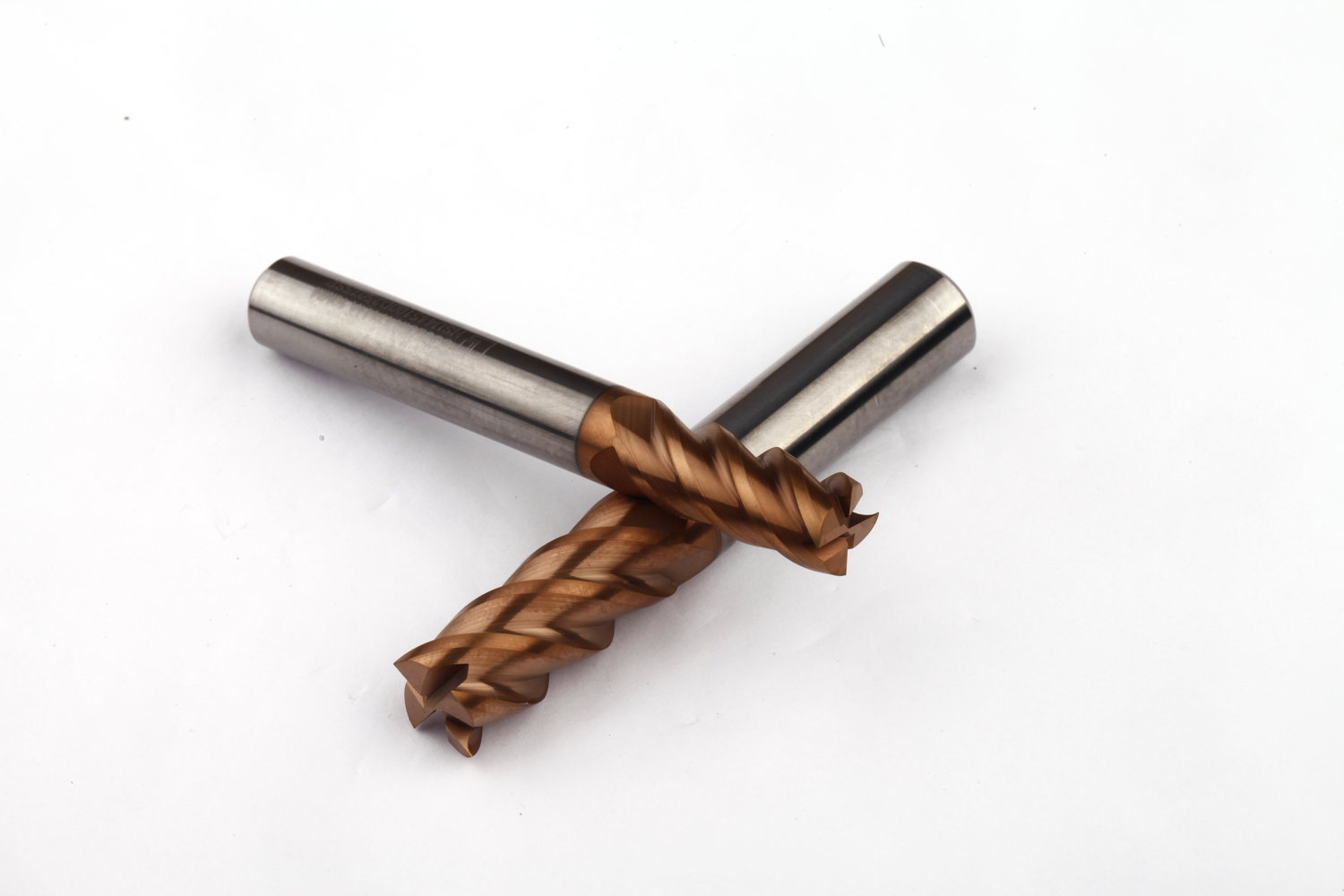

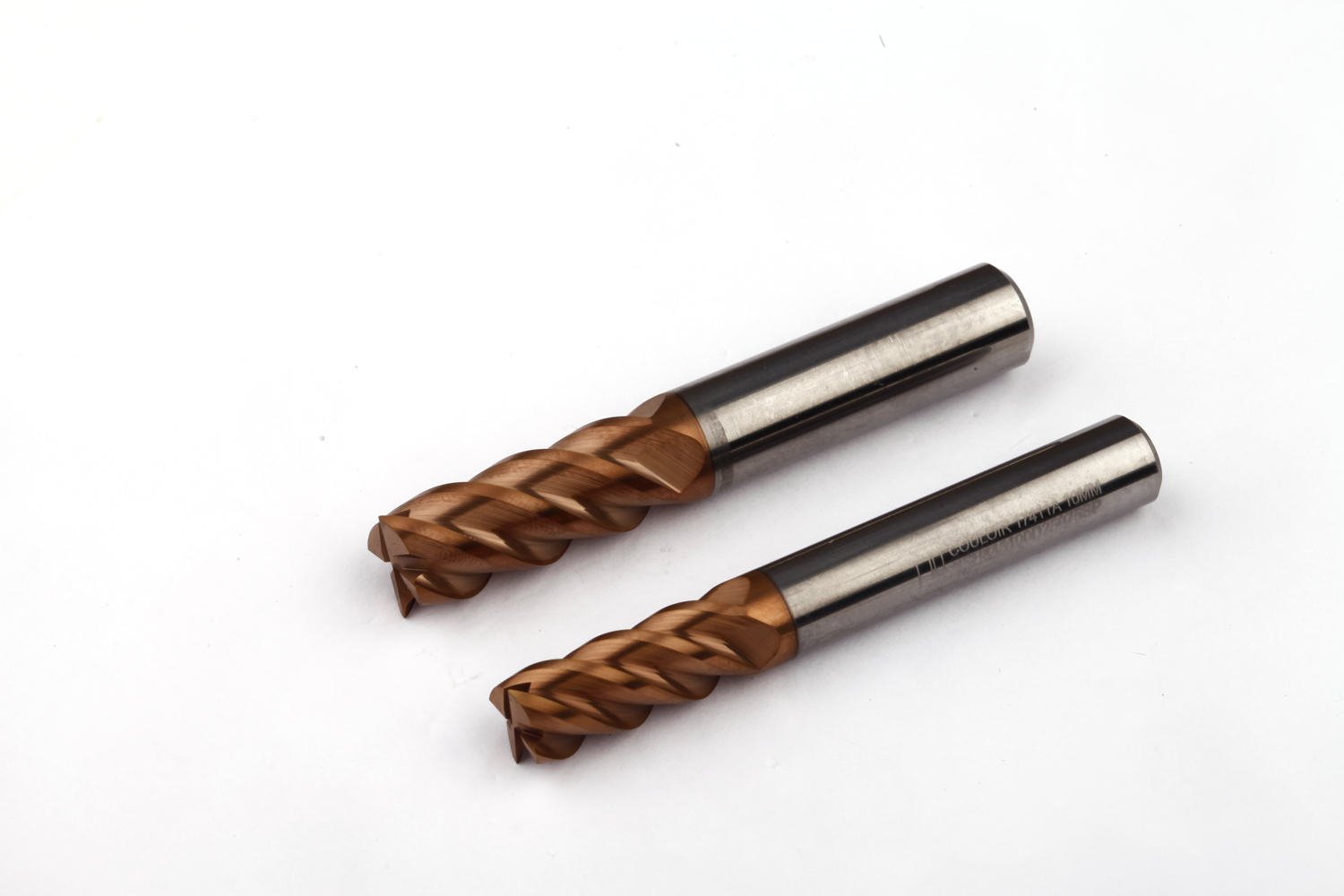

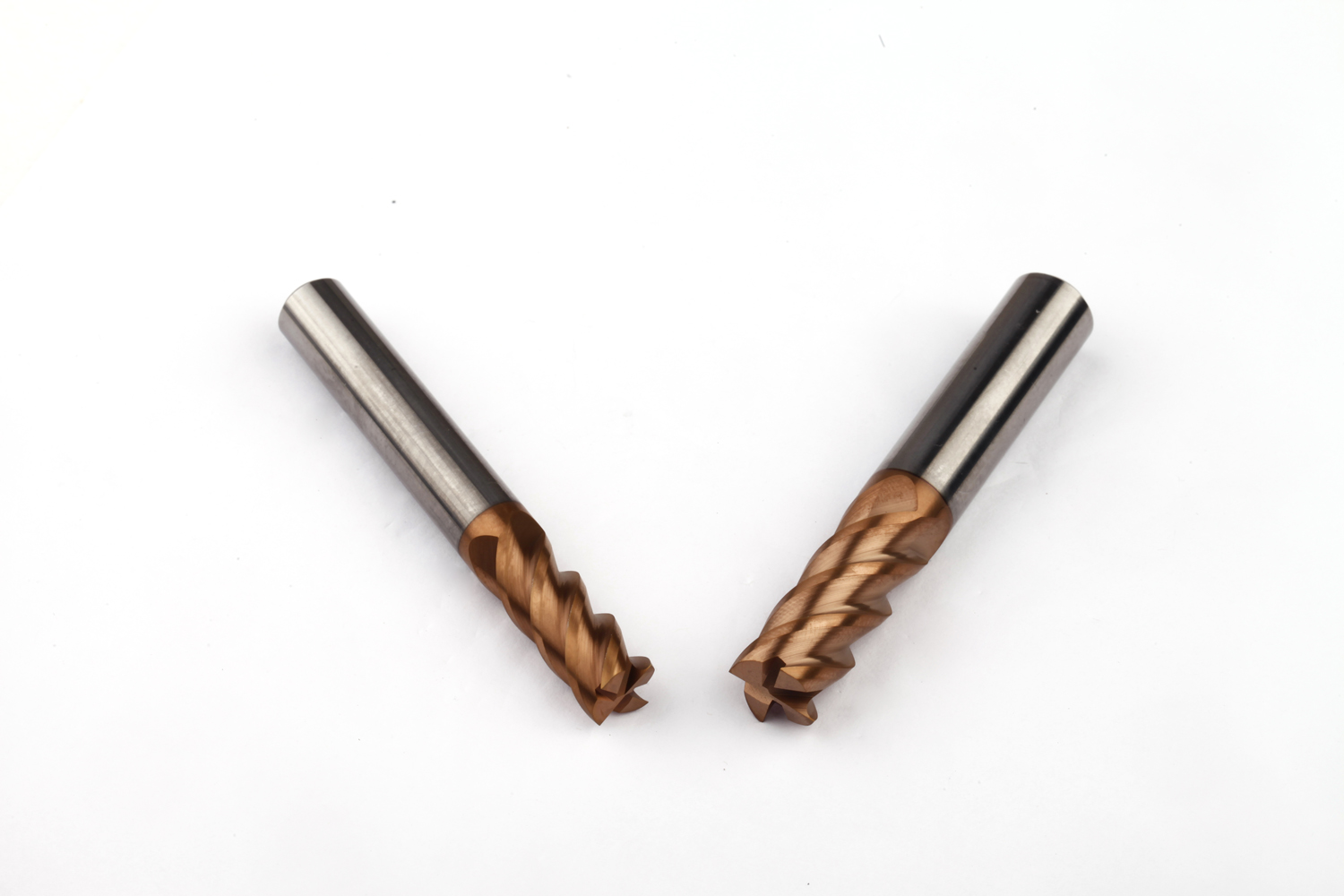

HSU445S


●Ultra-fine Cemented Carbide

●Suitable for HIGH HARDNESS Mold & Die material, HRC68

●4F, Square end, P coating, High hardness

●Super fine grinding cutting edge, multilayer nanoscale high hardness coating. Working hardness reach to HRC68.Flexible choose on tip and flute according to your need.

●Recommend Application: MOULD INDUSTRY.









P/N
D
（mm）
ap
(mm)
d
(mm)
L
(mm)
F# Tip Coating
HSU445 010 F1 30 050 S P 1 3 4 50 4 SQ Microkevlar P
HSU445 015 F1 26 050 S P 1.5 4 4 50 4 SQ Microkevlar P
HSU445 020 F1 30 050 S P 2 6 4 50 4 SQ Microkevlar P
HSU445 025 F1 32 050 S P 2.5 8 4 50 4 SQ Microkevlar P
HSU445 030 F1 26 050 S P 3 8 4 50 4 SQ Microkevlar P
HSU445 035 F2 28 050 S P 3.5 10 6 50 4 SQ Microkevlar P
HSU445 040 D  27 050 S P 4 11 4 50 4 SQ
 Microkevlar P
HSU445 045 F2 24 050 S P 4.5 11 6 50 4 SQ
 Microkevlar P
HSU445 050 F2 26 050 S P 5 13 6 50 4 SQ
 Microkevlar P
HSU445 055 F2 29 050 S P 5.5 16 6 50 4 SQ
 Microkevlar P
HSU445 060 D  26 050 S P 6 16 6 50 4 SQ
 Microkevlar P
HSU445 070 F3 28 060 S P 7 20 8 60 4 SQ
 Microkevlar P
HSU445 080 D  25 060 S P 8 20 8 60 4 SQ
 Microkevlar P
HSU445 090 F4 24 075 S P 9 22 10 75 4 SQ
 Microkevlar P
HSU445 100 D  25 075 S P 10 25 10 75 4 SQ
 Microkevlar P
HSU445 110 F5 23 075 S P 11 26 12 75 4 SQ
 Microkevlar P
HSU445 120 D  25 075 S P 12 30 12 75 4 SQ
 Microkevlar P
HSU445 160 D  28 100 S P 16 45 16 100 4 SQ
 Microkevlar P





HSU445 Speed and Recommendations
ISO         GROUP CMG Type of cut
ap*Dc
ae*Dc
Vc
Parameters
4 5 6 8 10 12 16
P P6

 Side Milling

1 0.4
    80
   60-100
RPM 6369 5095 4246 3184 2547 2123 1592
Fz 0.015 0.02 0.025 0.03 0.04 0.05 0.06
F 191 203 212 191 203 212 191
H H7

 Side Milling

0.5 0.2
     50
  35-65
RPM 3980 3184 2653 1990 1592 1326 995
Fz 0.007 0.008 0.01 0.012 0.016 0.02 0.024
F 56 51 53 48 51 53 48
S
    S
 19-21

 Side Milling

0.5 0.2
     32
 26-38
RPM 2547 2038 1698 1273 1019 849 637
Fz 0.005 0.008 0.012 0.019 0.032 0.038 0.048
F 51 65 81 96 130 129 122

Slotting

0.2 1
     25
20-30
RPM 1990 1592 1326 995 796 663 497
Fz 0.005 0.008 0.012 0.019 0.032 0.038 0.048
F 39 51 63 75 101 100 95
